燃氣熱輻射機組
首頁 / 產品 / 燃氣采暖設備 / 燃氣熱輻射機組 / 燃氣熱輻射(變氣量)供熱機組

燃氣熱輻射(變氣量)供熱機組

應用:解決大空間供暖需求

特點:精確調節燃氣與自然空氣的配比,最大限度地利用無線智能控制。多重安全防護,精準節能,安裝成本低,安全可靠。

型號: AirTS-G

功能:加熱

熱源或介質:天然氣

控制方式:無線控制、變頻、自動監控

質量保證

質量保證

售后服務

售后服務

工作原理

燃氣紅外輻射加熱的原理步驟:

燃氣紅外輻射加熱系統采用氣體和空氣的混合物在散熱器中燃燒。

當太陽照射時,熱量通過紅外輻射輻射到物體表面。

一些紅外線以熱量的形式被吸收到物體中,部分紅外線被二次輻射反射。

被照射物體吸收的熱量被傳遞到周圍的空氣或其他物體上。

Variable Gas Volume Heat Radiation Units

功能

節省投資

方便靈活的布局

U型輻射管

直線型輻射管

燃氣量可變

易于安裝

空氣分層

無線控制

技術特點

Easy for installation

? Fuel gas or liquefied gas can be used without boiler and operation and maintenance personnel.


Saving investment

? The gas-fired infrared radiant heating system omits the complex system of traditional heating method, such as heat exchange station, which greatly saves the initial investment.


No dust

? It adopts the mode of gas-fired infrared radiant heating to avoid indoor air convection and dust, which is good for maintaining a good environment.


Convenient and flexible layout

? It takes up small space and is less affected by space restriction. It can be installed in the specified position according to requirements, such as station local heating.


Switch on it while using

? It can be intermittent heating, and can be switched on when you need it, without heating all the air in the space.


Air stratification

? Infrared radiation travels through the air and directly heats the irradiated object, with a small process loss.


The enclosed structure has low insulation requirements

? In poor insulation environments such as: long-term open door, open air, the people can still feel the warmth of sunlight even when the wind is cold.


Safety and environmental protection

? Various safety detection methods, the use of worry-free. Full combustion, ultra-low tail gas nitrogen oxide emission, energy saving and environment protection.



技術參數

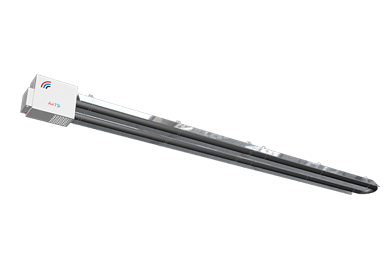

Variable Gas Volume Heat Radiation Unit

燃氣熱輻射(變氣量)供熱機組
型號
AirTS-G
輸出熱量kW5.47~54.75
運行方式
正壓運行
燃氣種類
天然氣 (CNG/LNG)
最大耗氣量m3/h5.4
供氣壓力Kpa5~10
工作壓力Kpa2
電源
單項交流電 220V50HZ
氣密性l/h≤ 0.006
風機噪音水平dB≤ 35
尾氣CO排放指標
≤ 0.001%


尺寸
型號AirTS-G
直線型標準長度m18.5
U型標準長度m10
管徑mm102
兩管連接彎頭尺寸(長*寬)mm400×500
輻射管罩尺寸(寬*高)mm330×170
燃燒機頭尺寸(長*寬*高)mm500×240×390
